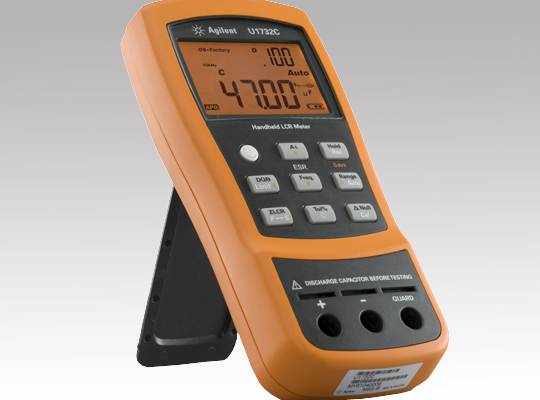

- Model number: U1732C
- Frequency range: 100Hz - 10kHz
- Accuracy (%): 0.2
- Item to be measured: Z/L/C/R/D/Q/θ/ESR
- Measurement range, C (ESR): 100Hz; 2000pF - 20.000mF, 120Hz; 2000pF - 20.000mF, 1kHz; 200pF - 2000μF, 10kHz; 20pF - 200μF
- Measurement range, L(θ): 100Hz; 2000μH - 2000H, 120Hz; 2000μH - 2000H, 1kHz; 200μH - 2000H, 10kHz; 20pF - 200μF
- Measurement speed: 1 times/s
- Display: 19999, 999 counts (2 lines), Automatic polarity, cell remaining amount warning, Backlight
- Interface: IR-USB
- Supported OS: Windows(R)XP/VistaTM/7
- Power supply: 006 (9V) alkaline dry cell x 1 (included for test) or AC adapter (optional)
- Size: 87 x 41 x 184mm
- Weight: 337g (including battery)
- Accessories: Test lead with alligator clip (red, black) x 1
- Package size：115×65×220 mm 610 g
