Features

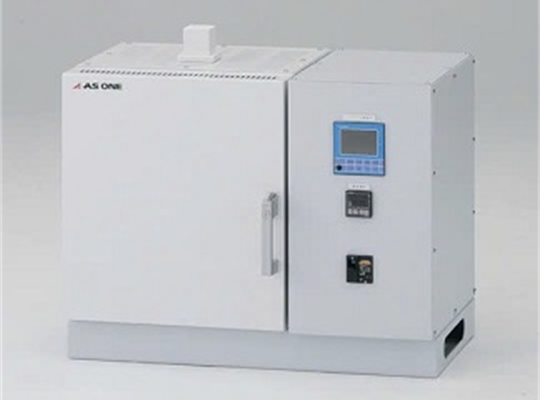

- It is a very high temperature type electric furnace with a maximum service temperature of 1600°C.
- Since it comes with a gas replacement port, it can be heated while replacing with inert gas such as nitrogen gas.
- The temperature rise speed is fast, and it rises to the maximum temperature in about 60 minutes.
Spec
- Model number: HTR-1010
- External dimensions: 705 x 500 x 540mm
- Inner furnace dimension (mm): 120 x 150 x 100
- Temperature settings range: 100 - 1650℃
- Temperature setting resolution: 1℃
- Normal maximum temperature: 1500℃
- Temperature adjustment system: PID control
- Sensor: R-type thermocouple
- Heater: Molybdenum silicide heater 3000W
- Program function: 16 steps 4 patterns
- Time settings range: 0 minutes - 99 hours 59 minutes (1 minute unit)
- Safety mechanism: Independent excessive rise prevention device, door switch, sensor abnormality detection, overcurrent breaker
- Material: Exterior/steel (heat-resistant coating finish), Furnace body/ceramic high-temperature board
- *Including sensor protrusions
-
*This product might require extra fees.
Package size：780×580×600 mm 110 kg
