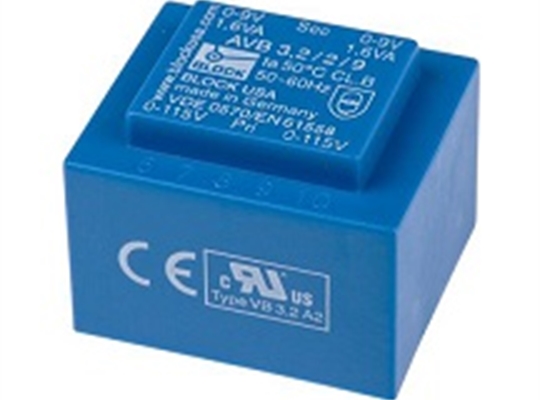

- VDE 0570/EN 61 558, UL 506, CSA 22.2. Transformers PCB Mount, Short Circuit Proof, AVB Series. Dual 115Va.c. 50 to 60Hz primary Twin secondary windings for series or parallel connection AVB series are inherently short circuit proof compact design Vacuum epoxy resin moulded to UL94-V0 rating Double section glass fibre reinforced polyamide bobbins 100% electrical and flash tested High efficiency and low temperature rise
Spec
- Quantity：1piece
- Secondary Voltage Rating : 9V ac
- Power Rating : 3.2VA
- Primary Voltage Rating : 115 V ac, 230 V ac
- Number of Outputs : 2
- Length : 41mm
- Width : 35mm
- Depth : 30.8mm
- Dimensions : 41 x 35 x 30.8mm
- Weight : 170g
- Mounting Type : Through Hole
- Maximum Temperature : +50°C
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- CODE No.:667-5322
