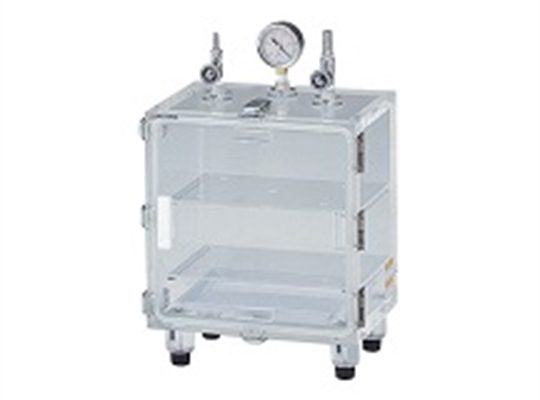

Features
- It comes with a vacuum gauge that lets you know the degree of vacuum at a glance. * Vacuum valve has 2 ports with outer diameters of φ8mm and φ14mm. * It uses a highly sealed silicon packing.
- -C has an outlet inside the box and a switch outside.
Spec
- Material: Main body / transparent reinforced PMMA (acrylic) (plate thickness: 20 mm), valve vacuum gauge mounting / PC (polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- shelf board Dimensions: 257 x 171 x 4 tmm
- number of shelves: 2 stages (shelf board interval : 100 mm)
- shelf board Load tolerance: about 2 kg / stage (equal load)
- Capacity: 12 L
- Weight: 11 kg
- Outlet with external switch 100 V 15 A 1 Chain with 1 piece
- Model Number: VL type
- external dimension (mm): 300 x 222 x 360
- inner size (mm): 260 x 180 x 260
- With outlet
- Vacuum valve: Small / outer diameter mm outer diameter φ8 / mm / AC100V / 1 piece / power supply A3 cord with a cord of approx. 2.9 m with OA adapter, 1 piece 15 A3 P x 1 port, power cord switch (Each 1 piece): 1 piece 14 A cord with OA adapter x shelf board, silica gel plate x 2 pieces 1 piece
- Recommended vacuum pumps: Dry vacuum pumps DTC-22, (1-4148-11) (1-671-06) Dry vacuum pumps DA-20 D, (1-672-07) oil rotation vacuum pumps G-50 SA
- * Excluding projections.
-
Package size：400×400×470 mm 13 kg
