Features
- It uses a strong magnet and induction motor for high viscosity and high volume stirring.
- Feedback control by the taco generator provides stable rotation from low speed to high speed.
- Achieves stable rotation even in the low rotation range.
- The support rod option is available.
- Stainless Steel Top Plate Features: Excellent chemical and corrosion resistance.
Spec

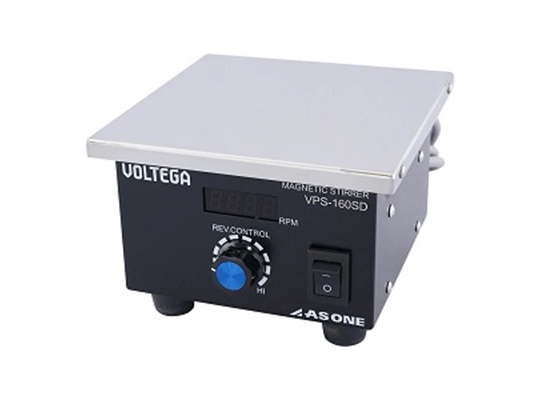

- Model number: VPS-160SD
- Main unit size (mm): 160 x 160 (171) x 111
- Top board size (mm): 160 x 160
- Material: SPCC (acrylic coating), Top board/Stainless Steel (SUS304)
- Motor: Induction motor
- Top board material: Stainless Steel (SUS304)
- Top board size: 160 x 160mm
- Rotation speed: 60 - 1350rpm
- Motor: 3W
- Stirred capacity: 10L
- Magnet/strength (T): Neodymium/0.42
- Power supply: AC100V 50/60Hz, 2.5m 3P plug (with 2P conversion adapter)
- Maximum power consumption: 20/25W
- Main unit size: 160 x 160 (171) x 111mm (Size including projections is described in ())
- Weight: 2.3/2.5kg
- *Demonstration equipment 3-6758-03 is available.
- *Stirring capacity and recommended stirring bars are indicated when the target is water.
- *The size of the stirring bar to be used varies depending on the capacity and the viscosity. Use properly depending on the purpose.
-
Package size：220×285×145 mm 2.9 kg
