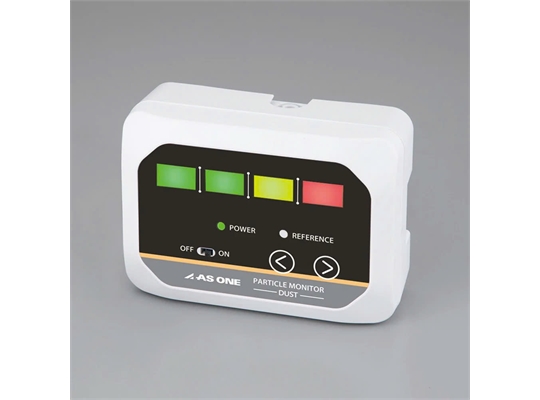

Features
- Particles suspended in air can be easily measured and displayed using the light scattering method.
- The dust concentration is useful in the work environment for occupational health and safety management.
- Multi-point measurement and constant monitoring at various locations are possible.
- It is possible to visualize the air environment around the work site and inside the factory.
- Continuous monitoring is possible, and abnormalities can be notified instantly.
- The dust concentration (μg/m3) can be displayed with 4 levels of LED.
- Linear measurement up to approximately 300 μg/m3 is possible.
Spec
- Measurement range: 0.0~300.0 μg/m3 * 1
- Output unit: 0.1 μg/m3 * 2
- light sources: laser diodes
- Measurement method: Light scattering method
- Measurement sensitivity: 1CPM=0.1 μg/m3 * 3 against our company's standard tobacco smoke (correction factor 1)
- Sampling method: Fan suction
- Data Output Values: 60 second average
- Data refresh time: 1 second
- Temperature and humidity measurement function: x
- Analog output: 0
- Digital Communications: No
- Alarm output: Yes
- Power: 12~24 VDC
- Digital communication system: Ethernet, Wi-Fi
- Accessory: AC Adapter 100~240 VAC 50/60Hz
- Size (mm): 120 x 46.5 x 87
- Weight (g): about 210
- Quantity: 1 Piece
- *1. Do not use the product in an environment that greatly exceeds the measurement range, or in an environment where you are directly exposed to metal powder at work sites such as welding.
- *2 CPM is not output.
- *(3) For our company standard tobacco smoke (= correction factor 1) (correction factor can be changed on evaluation software).
-
Package size：200×170×90 mm 5.5 kg
