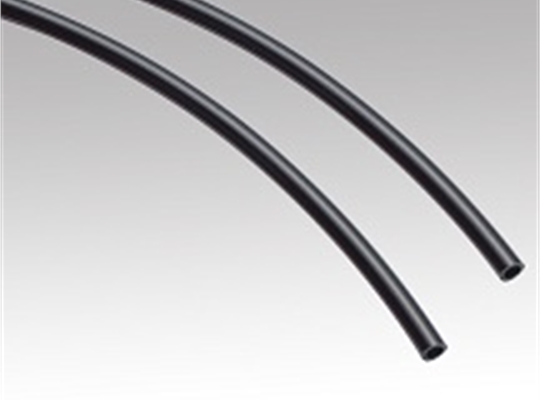

- Model number: UB0640-20 B
- Material: PU (polyurethane)
- Operating temperature range: 15 ~ + 60 ° C
- maximum working pressure: 0.8 MPa (at 20 ° C 65 %RH)
- Vacuum pressure: 100 kPa
- Fluid used: Water and air
- Maximum length: 20 m
- Color: Black
- Inner diameter × outer diameter: φ 4.0 × φ6 mm
- * Sales are 20 meter units
- * The price is about 20 meters
- * Use insert ring (sold separately) when connecting to a one-touch fitting and using water.
- RoHS2 (EU) 2015/863
-
Package size：355×50×430 mm 410 g
