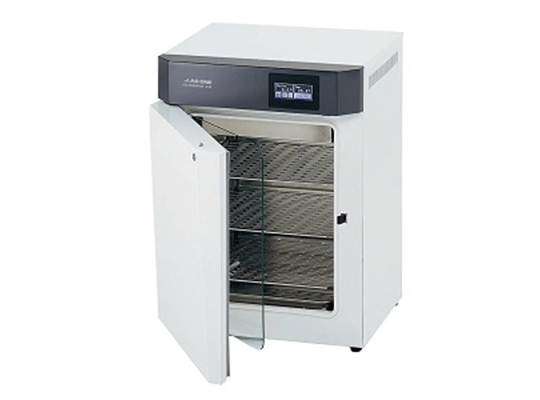

- Model number: E-50
- Capacity (L): 50
- Outer dimension (mm): 490 x 460 x 680
- Temperature settings range: Room temperature +5 - 50℃
- Temperature sensor: Platinum resistance thermometer
- CO2 concentration control range: 0 - 20%
- CO2 sensor: NDIR (infrared) type
- Heating method: Air jacket
- Humidification system: Natural evaporation system (with tray irrigation)
- Convection: Internal circulation fan
- Safety device: Overcurrent protection fuse/excessive temperature rise prevention device (digital setting)
- Internal dimensions: 350 x 325 x 440mm
- Number of shelf board: 3
- Shelf board dimensions: 330 x 310mm
- Shelf board position: 8 steps (30mm pitch)
- Control panel: Touch panel (analog resistance film method)
- Power supply: 100VAC 50/60Hz cord length/1.9m
- Security setting: 4 digit PIN code lock (with physical key for emergency)
- *Demonstration equipment -01 is available.
- *Please use it for research and experiment only. You cannot use it for medical purposes.
-
Package size：545×580×720 mm 40 kg
