Features
- Able to control the temperature of an external device using a discharge pump.
- It is easy to clean inside the tank because the controller is removable.
- Integrates an overheat prevention function that stops the operation when overheated.
Spec

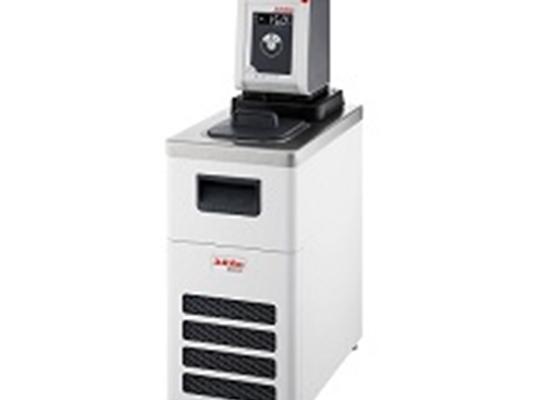

- Model number: CD-200F
- Temperature adjustment range (℃): -20 to +150
- Temperature accuracy (℃): +/- 0.03
- External circulation method: Sealed system circulation method
- Display resolution: 0.1℃
- Cooling capacity (medium: Ethanol): 220W (at 20℃)/170W (at 0℃)/60W (at 20℃)
- Refrigerant: R134a
- Pump capacity: Maximum discharge pressure/0.035MPa (350mbar), maximum discharge quantity/15L/min
- Heater capacity: 800W
- Tank capacity: 4L
- Bus opening/depth: 130 x 150/150mm
- Power supply: 100VAC 50/60Hz
- Outer dimensions/weight: 230 x 390 x 650mm/27.6kg
-
Package size：560×380×860 mm 25 kg
