Features
- Uses durable stainless steel coils.
- Uses new HFC refrigerant with zero ozone depletion potential.
- Since the welding part is made of stainless steel, it has excellent durability and can circulate pure water.
- It has strong cooling capability and can be used in a wide range of fields.
- The external temperature sensor allows direct measurement of the temperature of the object.
- It has an overload protection device, a high-pressure pressure switch, a safety breaker, and a self-diagnosis function.
Spec

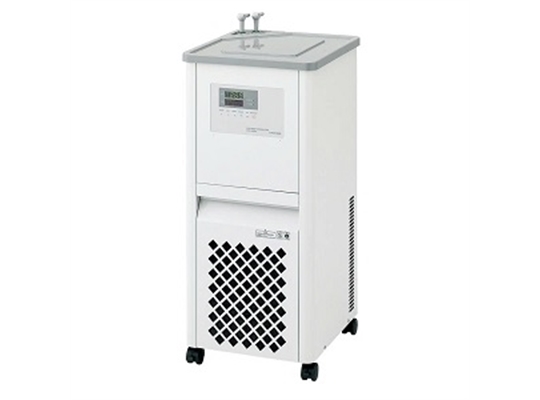

- Model number: LTC - 1200α
- Temperature range (℃): -20 to +30
- Temperature control accuracy: ±2.0℃ *1
- Circulation method: Sealed system circulation
- Temperature control accuracy: ±2.0℃ *1
- Type of liquid used: City water, pure water, ethylene glycol, etc
- Circulation pump (50/60Hz): Maximum flow 20/20L/min, maximum head 9.5/12.9m (circulation pump performance is when using pump single)
- Circulating nozzle outer diameter: φ11mm (adaptive tube inner diameter φ9mm)
- Refrigerating machine: 675W
- Liquid bath: φ280 x H280mm approximately 16L
- Refrigerant: R407C
- Power supply: 100VAC 50/60Hz
- Timer function: 1 minute - 99 hour (1 minute unit)
- Self-diagnosis function: Upper/lower limit temperature abnormality detection, sensor abnormality, frozen machine overload relay, frozen machine protection timer, power failure detection, control temperature abnormality, memory error
- External input, external output: External temperature sensor input terminal, analog output terminal for thermometer (DC1 - 5V) alarm output terminal (DC12V - 17V)
- Size: 357 x 407 x 800mm
- Weight: Approx 45kg
- *You can use pure water whose conductivity meter is 10μS/cm or more (low purity).
- *1: Room temperature 20℃/maximum circulation amount/power AC100V 50/60Hz/settings 5 - 20℃/no load
- RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
-
Package size：510×460×880 mm 48 kg
