Features
- This is a program control expression that can store 4 programs of up to 16 steps.
- Stable temperature control is possible with PID temperature control and SSR output.
- Program control the speed of temperature rise.
Spec

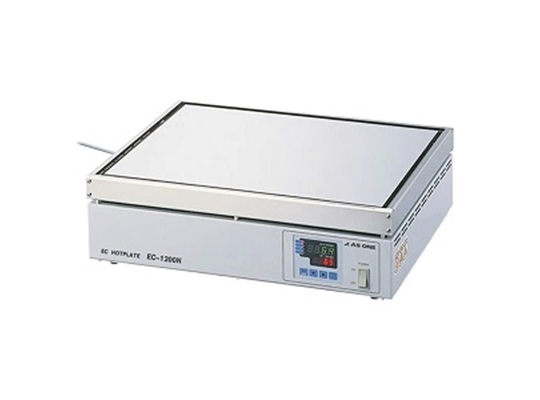

- Model number: EC-1200NP
- Highest temperature: 300 ℃
- Plate size: 400 x 300mm
- Plate material: Aluminum
- Temperature control system: PID control with auto-tuning function
- Heater capacity: 900W
- Withstand load: Approx 10kg
- Power supply: AC100 V50/60Hz
- Power cord length: 2m (2P plug)
- Time allowed for continuous use: 48 hours (at the time of 250℃)
- Variable temperature-gradient type
-
Package size：510×420×135 mm 11 kg
