Features
- High precision temperature control is possible by adopting microcomputer type PID control.
- The display section features a highly visible LCD screen.
- Four timer functions (ON, OFF, ON/OFF, SET) are provided as standard, and the program function can input temperature and time up to 8 steps.
- Dedicated software (CDROM) and communication cable (optional) for data recording and communication make it possible to easily manage data on a personal computer.
- It is possible to control the sample temperature directly by using an external temperature sensor (optional).
- Alarm signal output is provided as standard, and it is possible to stop other equipment or start a backup system in case of an abnormality.
- A safety lamp is provided between the front operation section and the hot plate section (the lamp lights until the top plate temperature reaches 55°C or less).
- The safety device uses a double lock mechanism consisting of two independent circuits.
- It will rise to the maximum temperature in about 30 minutes.
- Top plate temperature distribution width is 4°C (200°C setting) with high accuracy.
Spec

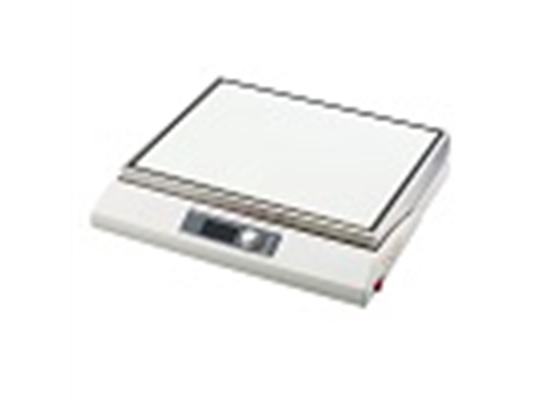

- Model number: ND-3LA
- Highest temperature (℃): 300
- Plate size (mm): 400 x 300
- Temperature settings range: Room temperature +10 - 300℃
- Temperature settings: Digital input type
- Temperature distribution width: 4℃ (*temperature distribution width is indoor environment 25℃ (no wind, no load, using internal sensor), Reference value when setting to 200℃. )
- Temperature control system: Microcomputer type PID control system, ON/OFF control system
- Temperature display system: LCD digital display (setting/measurement temperature simultaneous display, heater output bar graph display)
- Internal temperature sensor: K class thermocouple
- Safety device: Self-diagnosis function (Upper or lower limit temperature abnormality detection, heater abnormality detection, sensor abnormality detection), abnormal heating preventive device (thermostat), overcurrent fuse
- Heater capacity: 1430W
- Additional function: Timer function: Setting range/1 minute - 99 hours 59 minutes (1 minute unit), Program function: Number of steps/maximum 8 steps, repeat times/maximum 9999 times, Setting resolution/temperature 0.1℃, time 1 minute, Communication function: PC output (USB), External temperature sensor supported, Upper or lower limit temperature alarm, Alarm signal output, Settings value memory function, Key lock function, Auto-tuning function
- Plate material: Aluminum (ceramic coating)
- Size: 470 x 410 x 101mm
- Power supply: 100VAC 50/60Hz
- Power cord length: Approx 2m
- *Demonstration equipment 1-4601-31, 32, 41, 42 are available.
- RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
-
Package size：495×550×175 mm 13.58 kg
